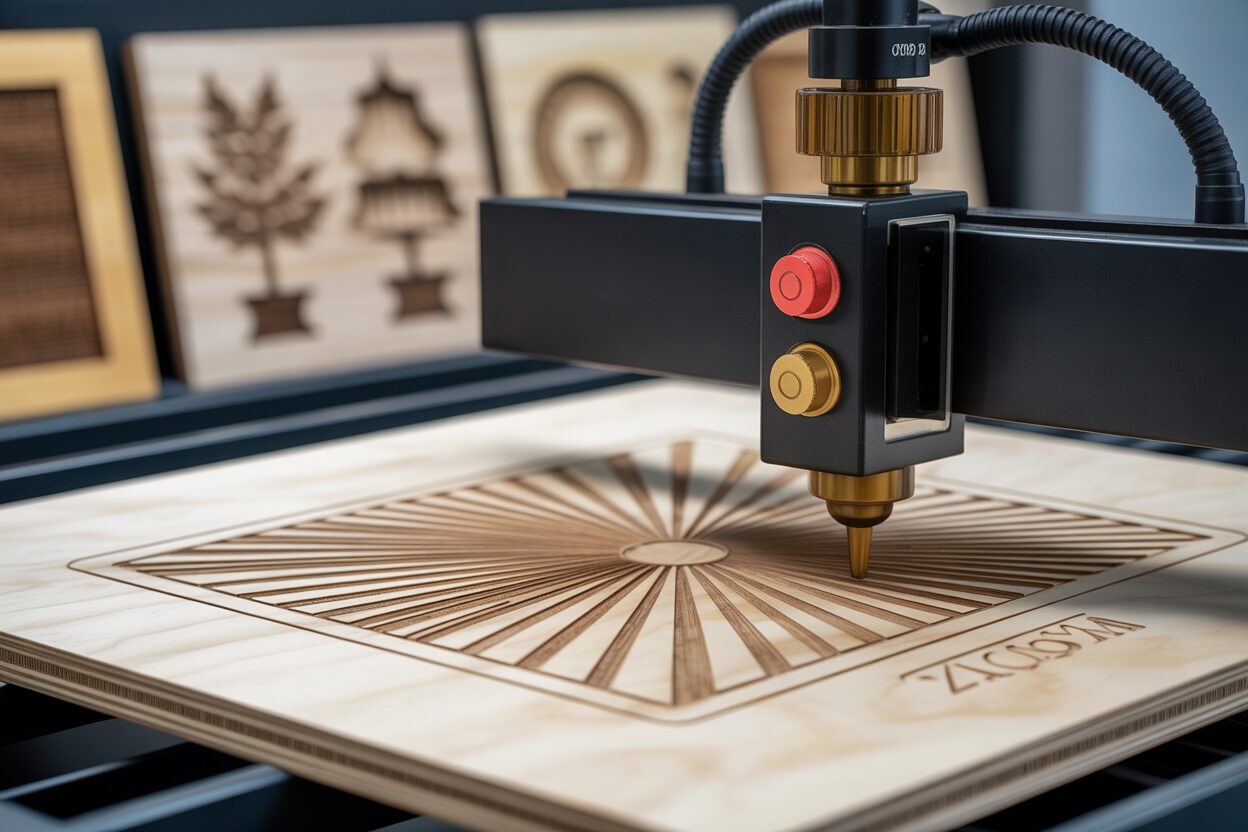

Mastering Laser Engraving on Wood: Techniques, Ideas and Materials

Home » Blog » Projects » Mastering Laser Engraving on Wood: Techniques, Ideas and Materials

Estimated reading time: 13 minutes

Key Takeaways

Wood Selection is Crucial: Different wood species (hardwoods, softwoods, plywoods) react uniquely to lasers, significantly impacting engraving quality and appearance. Choose dense, fine-grained woods like Maple, Cherry, or Alder for crisp details, or softer woods for cost-effectiveness and rustic effects.
Design for Optimal Results: Effective laser engraving requires high-resolution design files (300-600 DPI), adequate line thickness, and strong contrast. Proper file preparation, including dithering for photos and vectorization for graphics, is essential for translating designs accurately.
Explore Advanced Techniques: Beyond basic engraving, techniques like 3D engraving (relief), photo engraving, material inlays, and adding color can elevate projects. Each requires specific material choices, laser settings, and post-processing steps to achieve stunning effects.
Finish for Protection and Aesthetics: Meticulous post-engraving cleaning removes char and residue, preparing the surface for finishing. Applying suitable finishes—oils for natural feel, varnishes for durability, lacquers for gloss, or waxes for a soft sheen—protects the wood, enhances its beauty, and ensures the longevity of your engraved pieces.

Laser engraving on wood offers a versatile way to personalize items, create intricate art, and produce unique products. This article delves into the best wood types for engraving, design considerations for optimal results, and various techniques to elevate your projects. Discover how to effectively use laser engraving wood to bring your creative visions to life and explore popular laser engraving projects.

Choosing the Right Wood for Laser Engraving

Selecting the appropriate wood is paramount for successful laser engraving wood projects. Different wood species, and even variations within the same species, react uniquely to the laser, significantly impacting the final appearance and quality of your work. Understanding these characteristics allows for more predictable results and opens up diverse wood laser engraving ideas.

Hardwoods: The Premium Choice

Hardwoods are often considered the best laser engraving materials for achieving crisp, detailed engravings. Species like Cherry, Maple, and Alder are particularly favored. Cherry wood offers a beautiful contrast when engraved, darkening to a rich, almost black, color. Its fine, uniform grain structure allows for intricate details in custom laser engraving wood designs. Maple, being lighter in color and very dense, provides a subtle, elegant burn that is darker than the wood but not starkly black. It’s excellent for high-resolution photo engraving and delicate patterns in laser engraving projects. Alder is another popular choice due to its consistent light color and minimal grain, which results in a very clean and uniform engraved appearance. Oak, while a hardwood, can be more challenging due to its prominent grain pattern; the laser tends to engrave differently on the denser latewood versus the less dense earlywood, potentially leading to uneven depth and coloration. However, this can also be used creatively for certain rustic laser engraving projects. The low resin content in most hardwoods generally leads to cleaner engravings with less sticky residue compared to some softwoods.

Softwoods: Balancing Cost and Effect

Softwoods like Pine and Cedar can also be used for laser engraving wood, but they present different characteristics and challenges. Pine is inexpensive and readily available, making it a common choice for practice or rustic-style projects. However, its prominent grain pattern and varying density often result in uneven engraving depth and color. The lighter springwood engraves deeper and darker, while the denser summerwood engraves shallower and lighter. The higher resin content in many pines can also lead to more charring and sticky residue, requiring careful cleaning. Cedar, known for its aromatic properties and reddish hues, engraves beautifully but can also exhibit unevenness due to its grain. Its softness means it engraves quickly, requiring lower power settings. The natural color variations and aromatic qualities of cedar can enhance certain wood laser engraving ideas, especially for items like keepsake boxes or plaques. When working with softwoods, lower power settings and faster speeds are generally recommended to minimize excessive burning and resin bleed. Appropriate masking can also significantly reduce surface staining around the engraved areas. These woods are often better suited for bolder designs rather than extremely fine details.

Interested in more Boxes? Check out our Boxes laser file designs: Click here!

Plywoods and Manufactured Woods

Plywood, especially Baltic Birch, is a popular choice for laser engraving wood due to its consistency, stability, and affordability. Baltic Birch plywood typically has a light, uniform surface and thin, consistent core veneers, resulting in a fairly even engraving. The glue lines between layers can sometimes be visible in deeper engravings, which can be a desirable or undesirable effect depending on the project. When choosing plywood, look for varieties with interior-grade glues, as some exterior glues can be problematic for laser engraving and may produce harmful fumes. MDF (Medium Density Fiberboard) is another manufactured wood product that engraves very consistently due to its uniform density and lack of grain. It produces a smooth, even color, but the engraved area can appear somewhat dull and lacks the natural character of real wood. It’s often used for applications where a painted finish will be applied over the engraving. When considering 3d laser engraving wood, denser uniform materials like Maple or Alder, or even high-quality MDF, often yield the best results because they support fine variations in depth required for the 3D effect without the interruption of strong grain patterns.

Grain, Color, Resin, and Sourcing

The grain pattern is a critical factor in laser engraving wood. Woods with a tight, consistent grain like Alder, Cherry, or Maple produce the most uniform and detailed engravings. Woods with a pronounced or uneven grain, such as Oak or Pine, will result in engravings where the depth and color intensity vary with the grain. The wood’s natural color also significantly influences the contrast of the engraving. Lighter woods like Maple, Birch, or Basswood provide high contrast, as the engraved area becomes noticeably darker. Darker woods like Walnut will show a more subtle tonal difference. Resin content, particularly high in many softwoods like Pine, can liquefy under the laser’s heat, leading to sticky residue and potential flare-ups. Choosing kiln-dried wood helps reduce moisture and resin issues.

When sourcing laser engraving materials, look for wood that is flat, consistently thick, and free from knots, splits, or excessive warping. Specialized woodworking suppliers often carry “laser-ready” wood, which is typically prepared to a higher standard. Preparing your wood surface by lightly sanding with fine-grit sandpaper (220 or higher) can improve engraving quality, especially for producing sharp details in custom laser engraving wood. Wiping the surface with a tack cloth or denatured alcohol before engraving removes dust and oils. For particularly resinous woods or to prevent smoke staining on lighter surfaces, applying transfer tape or painter’s mask to the wood surface before engraving is highly recommended. The mask burns away with the engraving, protecting the surrounding wood. Experimenting with small test pieces of any new wood is crucial to dial in the optimal laser settings and understand how it will react.

Design Principles for Wood Laser Engraving

Effective design is the soul of any memorable laser engraving wood project. While the laser cutter executes the design, the quality of the input directly dictates the quality of the output. Understanding core design principles tailored for this medium is crucial for transforming your wood laser engraving ideas into tangible, professional-looking pieces.

Fundamental Design Considerations for Laser Engraving

Resolution plays a critical role, especially when engraving photographic images or intricate details. Most laser engraving wood projects benefit from a source file resolution of at least 300 DPI (dots per inch), with 600 DPI often preferred for highly detailed work on fine-grained woods. Lower resolutions can result in pixelation or a “jagged” appearance. Line thickness is another vital factor. Lines that are too thin may not engrave clearly, may appear faint, or can even get lost in the wood grain, especially on softer woods. A general rule of thumb is to ensure vector lines are no thinner than 0.1mm (or about 0.004 inches), though this can vary based on the laser’s spot size and the specific wood. Test cuts are always recommended for fine line work.

Contrast is perhaps one of the most important artistic considerations. The laser engraver creates depth and color change by burning away material. Designs with strong contrast between light and dark areas translate most effectively. For photographic engraving, this means source images often require pre-processing to enhance contrast, perhaps even converting them to a high-contrast black and white or using dithering methods. When designing custom laser engraving wood pieces, consider how the natural color of the wood will interact with the engraved (charred) areas to achieve the desired visual impact.

Creating and Preparing Engravable Files

The conversion of images into formats suitable for laser engraving is a key step. For photographs, this typically involves converting the image to grayscale and then applying a dithering pattern (e.g., Floyd-Steinberg, Stucki) through software like Adobe Photoshop, GIMP, or specialized laser software like LightBurn or RDWorks. Dithering uses patterns of dots to simulate shades of gray, which the laser can then replicate by varying the density of engraved points. Vector graphics, created in software like Adobe Illustrator, CorelDRAW, or Inkscape, are ideal for text, logos, and geometric patterns. These laser engraving files consist of mathematical paths, ensuring crisp, clean lines regardless of scale. Common vector formats include AI, SVG, DXF, and EPS. Raster files (like JPG, PNG, TIFF, BMP) are pixel-based and are used for photographic engravings. When sourcing laser engraving files online, ensure they are high-resolution and cleanly designed, especially for vector work – look for closed paths and minimal overlapping nodes.

Adapting Designs for Material and Desired Effect

The type of wood significantly influences design choices. A design intended for a light, fine-grained wood like Maple might need simplification or bolder lines if applied to a heavily grained wood like Oak, where fine details could be lost in the grain. Darker woods like Walnut will naturally offer less contrast with the engraved areas, so designs might need to be bolder or rely more on texture than on stark color differences for their impact. The desired engraving depth also impacts design; for instance, in 3d laser engraving wood, grayscale gradients in the design file are translated into varying engraving depths by the laser, with pure black typically representing the deepest engraving and white representing no engraving. Achieving a true 3D effect requires careful mapping of shades to depths and works best on dense, uniform woods. Simple text or logos might only require a shallow, clean engraving, while more artistic laser engraving projects might employ varying depths for texture and visual interest. Consider how scaling a design will affect its elements; thin lines that look good on a large piece might disappear when scaled down for a smaller custom laser engraving wood item.

Common Design Pitfalls to Avoid

Several common design mistakes can hinder your laser engraving wood projects. Avoid overly complex designs with excessive tiny details, especially for small items or coarse-grained woods, as these details can merge or become indistinct. Ensure text is large enough and fonts are chosen carefully for readability; very ornate or thin fonts can be problematic. Forgetting to convert text to paths or outlines in vector files is a frequent error, leading to font substitution issues if the laser system doesn’t have the specific font installed. Using low-resolution raster images will invariably lead to fuzzy or pixelated engravings. Another pitfall is not considering the “burn-in” or kerf of the laser, which can slightly enlarge engraved areas; this is particularly important for inlay work or tight-fitting components. Finally, always perform a test engrave on a scrap piece of the same material before committing to your final piece. This allows you to fine-tune settings and catch any design flaws that weren’t apparent on screen, ensuring your wood laser engraving ideas translate beautifully into reality.

Advanced Wood Laser Engraving Techniques

Once you’ve mastered the fundamentals of laser engraving wood, a world of advanced techniques awaits, allowing you to create truly unique and captivating pieces. These methods elevate custom laser engraving wood items from simple markings to intricate works of art, pushing the boundaries of what’s possible with your laser.

3D Engraving: Adding Depth and Dimension

3d laser engraving wood, also known as relief engraving, creates tactile, dimensional surfaces by varying the engraving depth based on grayscale values in your design. Pure black areas in your image file are engraved deepest, white areas are left untouched, and shades of gray translate to intermediate depths. This technique is exceptionally effective for creating sculpted portraits, intricate topographical maps, or textured patterns.

Process & Settings:

Design Preparation: Create or convert your image into a high-resolution grayscale bitmap (BMP is often preferred). Images with smooth tonal transitions work best. Specialized software can help convert 3D models into depth maps suitable for engraving.
Material Choice: Dense, uniform hardwoods like Maple, Cherry, or Alder are ideal as they hold fine detail well and char consistently. Avoid woods with prominent, uneven grain patterns. The thickness of the laser engraving materials should be sufficient to accommodate the desired maximum depth without compromising structural integrity.
Laser Settings: 3D engraving typically requires multiple passes at lower power settings rather than one deep pass. This minimizes charring and allows for finer control over depth. For example, on Maple with a 60W laser, you might use 3-5 passes at 30-40% power and a moderate speed (e.g., 150-200 mm/s). The laser’s Z-axis (focus) may need to be adjusted slightly between passes or a “3D mode” in your laser software might automatically adjust focus. Crucially, enable “Air Assist” to be strong to clear debris and reduce flare-ups, which are more common with deep engraving.
Post-Processing: After engraving, significant cleaning is often required. A stiff nylon brush or gentle sandblasting can remove char and reveal the subtle details.

Safety:

Deep engraving generates more smoke and debris. Ensure your ventilation system is robust and wear appropriate respiratory protection during cleaning.

Photo Engraving: Capturing Memories in Wood

Laser engraving photographs onto wood creates personalized and lasting mementos. The key is excellent source image preparation and choosing the right wood to maximize contrast and detail.

Process & Settings:

Image Preparation: Convert your photo to grayscale. Enhance contrast and sharpness. Use a dithering algorithm (e.g., Floyd-Steinberg, Stucki, or specialized photo engraving routines in laser software like LightBurn’s “Jarvis” or “Newsprint”) to simulate tones with laser dots. The optimal dots per inch (DPI) for engraving usually matches your laser’s capability, often between 300-600 DPI.
Material Choice: Light-colored woods with minimal grain, like Alder, Basswood, or Maple, provide the best canvas for photo engraving as they offer high contrast for the engraved areas. Coated or lacquered woods can also yield very sharp results.
Laser Settings: Photo engraving relies on varying the density of engraved dots, not necessarily deep engraving. Use relatively high speed (e.g., 300-500 mm/s) and lower power (e.g., 15-25% on a 60W laser). The goal is a consistent, dark mark without excessive burning. Some lasers offer variable power modes that adjust according to grayscale values.

Unique Wood Laser Engraving Ideas:

Create personalized cutting boards with family photos, wooden phone cases with pet portraits, or custom award plaques.

Inlay Effects: Combining Materials Beautifully

Laser cutting and engraving enable stunning inlay effects, where one material is precisely set into an engraved recess in another. This technique allows for beautiful contrasts in color and texture.

Process & Settings:

Design: Create two complementary vector designs: one for the recess (pocket) to be engraved in the base wood, and one for the inlay piece to be cut from a contrasting material (e.g., a different wood species, acrylic, or even thin metal). The inlay piece design must account for the laser kerf; it should be slightly larger than the pocket to ensure a snug fit, or the pocket design should be slightly smaller. Precise kerf compensation is critical here.
Engraving the Pocket: Engrave the pocket into your base wood. This is a vector engraving operation, often requiring multiple passes to achieve the desired depth, which should be slightly less than the thickness of the inlay material to allow for sanding flush.
Cutting the Inlay: Laser cut the inlay piece from your chosen contrasting material.
Assembly: Apply wood glue to the pocket and carefully press the inlay piece into place. Clamp as needed. Once dry, sand the entire surface flush to create a seamless transition.

Creative Applications:

Incorporate mother-of-pearl inlays into jewelry boxes, brass details into wooden signs, or contrasting wood species to create intricate marquetry-style laser engraving projects.

Adding Color to Engraved Areas

Filling engraved areas with color can dramatically enhance laser engraving wood projects, adding vibrancy and visual interest.

Process & Options:

Masking (Optional but Recommended): Before engraving, apply a high-quality laser-safe masking tape to the wood surface. Engrave through the mask.
Color Application:
- Acrylic Paints: Thin acrylic paints slightly with water or acrylic medium and carefully apply into the engraved recesses. If masked, you can be less precise.
- Epoxy Resin: Mix colored epoxy resin and pour or inject it into deeper engravings. This is particularly effective for 3d laser engraving wood elements or creating a durable, glossy fill.
- Wax Sticks or Paint Pens: For shallower engravings, specialized fill sticks (like Rub ‘n Buff) or fine-tipped paint pens can work well.
Excess Removal: If masked, carefully peel away the masking tape after the colorant has dried (or partially cured for epoxy), revealing crisp colored lines. If unmasked, carefully wipe away excess paint from the wood surface while it’s still wet, or sand it off once dry. For epoxy, overpour slightly and sand flush after full curing.

Considerations:

Test colorants on scrap wood first. The porosity of the wood and the depth of engraving will affect how the color is absorbed. Some laser engraving materials like certain plywoods have veneers that can delaminate if too much moisture is introduced.

These advanced techniques require patience, practice, and a willingness to experiment. By mastering them, you can significantly expand your repertoire of wood laser engraving ideas and produce truly exceptional items. Always prioritize safety, especially when working with deeper engravings or new materials, and ensure your workspace is well-ventilated.

Finishing and Protecting Engraved Wood Projects

The final step in creating exceptional laser engraving wood pieces is the application of a suitable finish. This not only enhances the visual appeal of the engraved design and the natural beauty of the wood but also provides crucial protection against moisture, UV light, dirt, and general wear. Proper finishing ensures the longevity and durability of your custom laser engraving wood products, from simple coasters to intricate 3d laser engraving wood art.

Post-Engraving Cleaning: Preparing the Canvas

Before any finish can be applied, the engraved wood surface must be meticulously cleaned to remove soot, resin residue, and any masking material remnants. The cleaning method depends on the wood type and the nature of the engraving.

Masking Removal: If you used masking tape, carefully peel it away. Lift it at a low angle to avoid pulling up wood fibers, especially on delicate veneers.
Brushing: Use a soft to medium-stiff nylon brush (an old toothbrush works well for small areas) to gently dislodge loose particles from within the engraved areas. For deeper engravings, like those found in 3d laser engraving wood, more vigorous brushing might be needed.
Compressed Air: A blast of compressed air can effectively remove fine dust from intricate details.
Chemical Cleaning: For stubborn resin residue, particularly on lighter woods, a cloth lightly dampened with denatured alcohol or a specialized laser engraving cleaner can be effective. Test on an inconspicuous area first, as some solvents can affect certain woods or pre-applied stains. Avoid over-saturating the wood, especially plywood, as it can cause swelling or delamination.
Light Sanding (Surface): Sometimes, very light sanding (e.g., 320 grit or higher) around the engraved area on the unengraved surface can remove any subtle smoke halos. Be extremely careful not to sand away the fine details of shallow engravings. Avoid sanding inside the engraved area itself unless specifically aiming to lighten the char.

For detailed laser engraving projects, patience during the cleaning phase is key to a professional result.

Choosing the Right Finish

The choice of finish depends on the type of wood, the intended use of the item, and the desired aesthetic.

Oils (e.g., Tung Oil, Danish Oil, Mineral Oil):

Pros: Penetrate deep into the wood, enhancing natural grain and color. Easy to apply and repair. Food-safe options (like mineral oil for cutting boards) are available. Provide a natural, low-sheen look.
Cons: Offer less protection against scratches and moisture compared to film finishes. May require periodic reapplication.
Best for: Cutting boards, rustic items, pieces where a natural look is paramount. Ideal for many laser engraving wood applications where maintaining tactile connection to the wood is desired.

Varnishes (e.g., Polyurethane, Spar Varnish):

Pros: Form a durable, protective film on the surface. Offer excellent resistance to moisture, scratches, and UV light (especially spar varnish for outdoor items). Available in various sheens (matte, satin, gloss).
Cons: Can sometimes impart a slightly plastic look if applied too thickly. Repairs can be more challenging. Some can yellow over time.
Best for: Items requiring high durability like tabletops, coasters, outdoor signs, and heavily used custom laser engraving wood products.

Lacquers (e.g., Nitrocellulose, Acrylic):

Pros: Dry quickly to a hard, durable finish. Can be polished to a high gloss. Often used in professional furniture making.
Cons: Fumes can be strong and require good ventilation. Some types can be brittle.
Best for: Decorative items, musical instruments, pieces requiring a smooth, often glossy, finish.

Waxes (e.g., Paste Wax, Beeswax):

Pros: Provide a soft, natural sheen and a smooth feel. Easy to apply and buff. Can be applied over other finishes (like oils) for added protection and luster.
Cons: Offer minimal protection against moisture and wear. Require periodic reapplication.
Best for: Low-wear decorative items, enhancing the patina of antique-style laser engraving projects, or as a final buff over other finishes.

Application Techniques for a Flawless Finish

Proper application is as important as the choice of finish.

Read Instructions: Always follow the manufacturer’s instructions for the specific product you are using.
Clean Environment: Work in a clean, dust-free environment to prevent particles from settling into the wet finish.
Thin Coats: Apply multiple thin coats rather than one thick coat. This promotes even drying and a smoother result.
Brushing/Wiping/Spraying:
- For oils and waxes, wipe on with a clean, lint-free cloth, allow to penetrate, then wipe off the excess.
- For varnishes and lacquers, use a high-quality brush, applying in long, even strokes along the grain. Spraying can provide the smoothest finish for these types, especially for complex 3d laser engraving wood surfaces, but requires more equipment and skill.
Sanding Between Coats (for film finishes): For varnishes and lacquers, lightly sand with very fine-grit sandpaper (e.g., 400-600 grit) between coats (once fully dry) to remove imperfections and promote adhesion of the next coat. Wipe away all sanding dust thoroughly.
Drying Time: Allow adequate drying time between coats as specified by the manufacturer. Rushing this step can ruin the finish.

Ensure the finish fully cures before the item is put into use. This can sometimes take significantly longer than the “dry to touch” time.

Maintaining Engraved Wood Over Time

Proper care will keep your laser engraving wood items looking their best.

Regular Dusting: Use a soft cloth or brush.
Gentle Cleaning: For most finished items, a slightly damp cloth is sufficient for cleaning. Avoid harsh chemical cleaners.
Reapplication: Oil and wax finishes may need occasional reapplication to maintain their protective qualities and luster.
Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause wood to fade and some finishes to degrade, even UV-protective ones.
Moisture Control: Avoid extreme fluctuations in humidity, which can cause wood to swell or shrink.

By carefully selecting and applying a finish, you not only protect your valuable laser engraving projects but also enhance their beauty, ensuring they are cherished for years to come.

Conclusions

Laser engraving on wood is a rewarding skill that blends technology with craftsmanship. By understanding the nuances of different woods, employing creative wood laser engraving ideas, and mastering various techniques, you can produce high-quality, personalized items. Continuous exploration of laser engraving materials and new laser engraving projects will further hone your abilities and expand your creative horizons in laser engraving wood.

FAQ

Q: What are the best woods for detailed laser engraving?
A: For crisp, detailed laser engravings, hardwoods like Cherry, Maple, and Alder are highly recommended due to their fine, uniform grain and consistent charring properties. They offer excellent contrast and detail retention.

Q: Why is photo engraving challenging on some woods?
A: Photo engraving relies on creating varying dot densities to simulate shades of gray. Woods with prominent or uneven grain patterns (like Oak or Pine) can lead to inconsistent engraving depth and color, making it difficult to achieve smooth tonal transitions and fine details. Light-colored woods with minimal grain are generally best for photo engraving.

Q: How do I prevent smoke staining when laser engraving wood?
A: To prevent smoke staining, especially on lighter wood surfaces, it is highly recommended to apply laser-safe masking tape or painter’s mask to the wood surface before engraving. The mask burns away with the engraving, protecting the surrounding wood. Additionally, ensuring strong air assist and proper ventilation helps reduce residue.

Q: What resolution should my design files be for laser engraving?
A: For optimal results, especially with photographic images or intricate details, source files should have a resolution of at least 300 DPI (dots per inch), with 600 DPI often preferred for highly detailed work on fine-grained woods. Lower resolutions can result in pixelation or a “jagged” appearance.

Q: What’s the purpose of post-engraving cleaning and finishing?
A: Post-engraving cleaning removes soot, resin, and masking remnants, preparing the surface for finishing. Finishing, whether with oils, varnishes, lacquers, or waxes, enhances the wood’s natural beauty, improves the visual appeal of the engraving, and provides crucial protection against moisture, UV light, dirt, and wear, ensuring the longevity and durability of the engraved piece.
